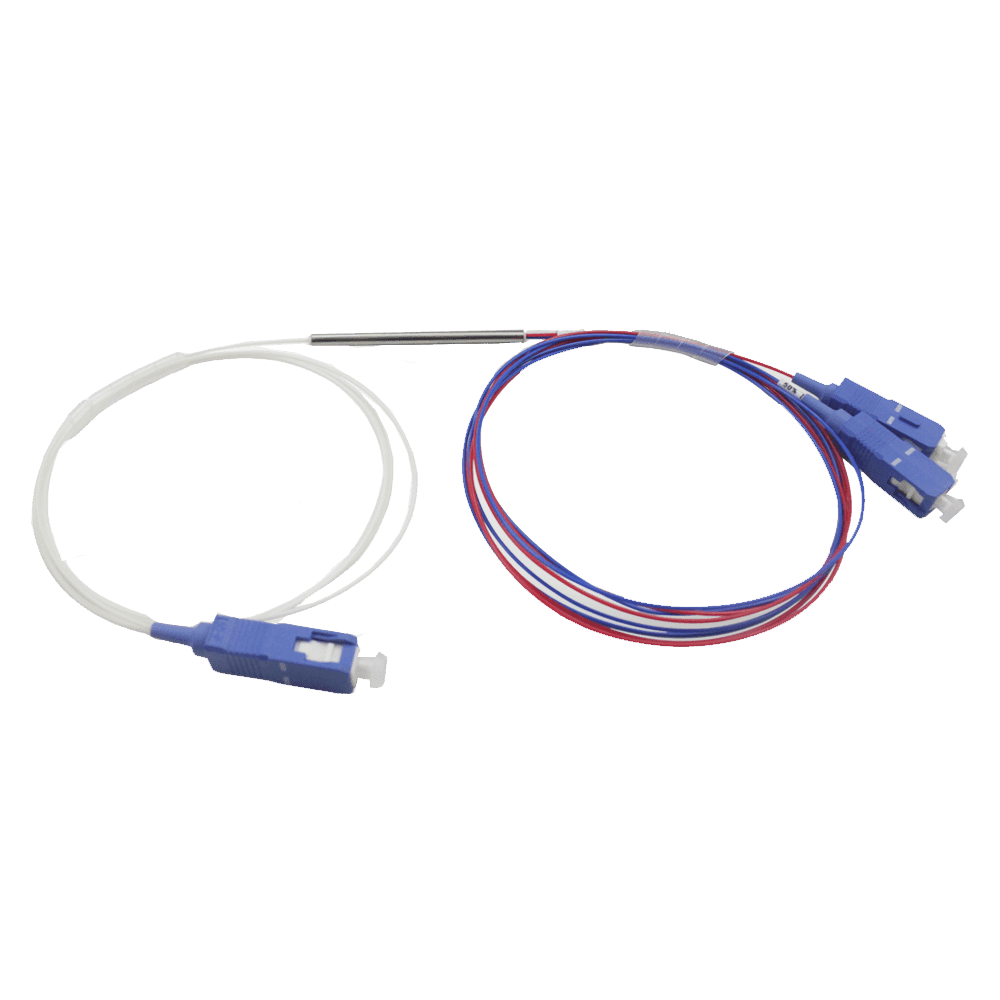

1X2 CWDM mini type
Description
Applications:
◆Line monitoring
◆WDM network
◆Telecommunication
◆Cellular application
◆Fiber optical amplifier
◆Access network
Features:
◆Low Insertion Loss
◆Wide pass band
◆High channel
◆High stability and reliability
◆Epoxy free on optical path
Parameters:
| Parameter | Specification | ||||
| Channel Wavelength (nm) | 1270~1610 or 1271~1611 | ||||
| Channel Spacing（nm） | 20 | ||||
| Channel Passband (@-0.5dB bandwidth (nm) | ≥13 | ||||
| Pass Channel Insertion Loss (dB) | ≤0.6 | ||||
| Reflection Channel Insertion Loss (dB) | ≤0.4 | ||||
| Isolation (dB) | Pass Channel | ≥30 | |||
| Reflect Channel | ≥13 | ||||
| Inertion Loss Temperature Sensitivity (dB) | ≤0.3 | ||||
| Wavelength Temperature Shifting (nm/℃) | ≤0.002 | ||||
| Polarization Dependent Loss (dB) | ≤0.1 | ||||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||||
| Directivity (dB) | ≥50 | ||||
| Return Loss（dB） | ≥45 | ||||
| Maximum Power Handling (mW) | 300 | ||||
| Opterating Temperature (℃) | -10~+70 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
| Package dimension (mm) | For 250μm, 900μm | Φ5.5xL38 | |||
| For 2.0mm, 3.0mm | L90 x W20 x H10 | ||||
