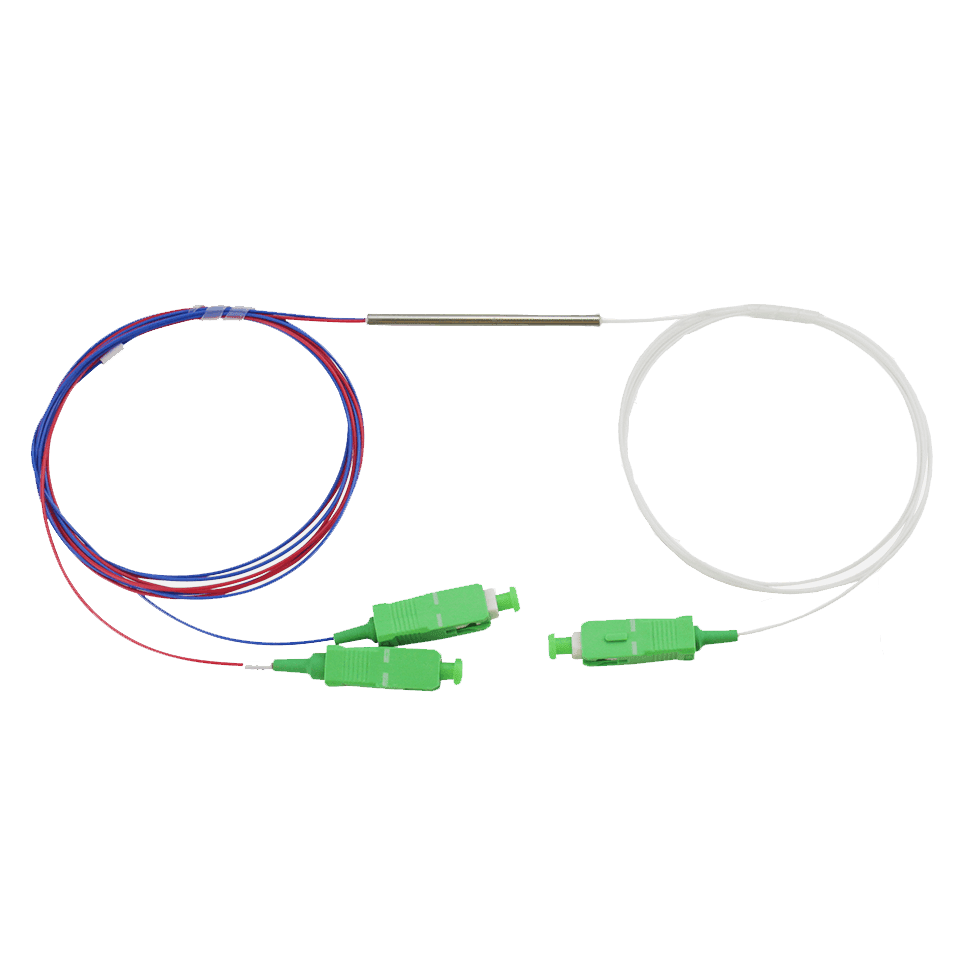

1X2 DWDM
1X2 DWDM
Description
Applications:
◆Channel Add/Drop
◆DWDM Network
◆Wavlength Routing
◆Fiber Optical Amplifier
◆CATV fiberoptic System
Features:
◆Low Insertion Loss
◆Wide pass band
◆High channel
◆High stability and reliability
◆Epoxy free on optical path
Parameters:
| Parameter | Mux/Demux | ||||||
| Channel Wavelength（nm） | ITU Grid | ||||||
| Channel Spacing（GHz） | 100 | 200 | |||||
| Channel Passband (@-0.5dB bandwidth)(nm) | ≥0.22 | ≥0.5 | |||||
| Pass Channel Insertion Loss (dB) | ≤1.0 | ≤0.9 | |||||
| Reflection Channel Insertion Loss(dB) | ≤0.4 | ≤0.4 | |||||
| Isolation（dB） | Pass Channel | ≥30 | |||||
| Reflect Channel | ≥13 | ||||||
| Insertion Loss Temperature Sensitivity(dB) | ≤0.3 | ||||||
| Wavelength Temperature Shifting (nm/℃) | ≤0.001 | ||||||
| Polarization Dependent Loss（dB） | ≤0.1 | ||||||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||||||
| Directivity（dB） | ≥45 | ||||||
| Return Loss（dB） | ≥45 | ||||||
| Maximum Power Handling（mW） | 300 | ||||||
| Opterating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Package dimension(mm) | For 250μm, 900μm | Φ5.5 x L38 | |||||
| For 2.0mm, 3.0mm | L90 x W20 x h10 | ||||||
