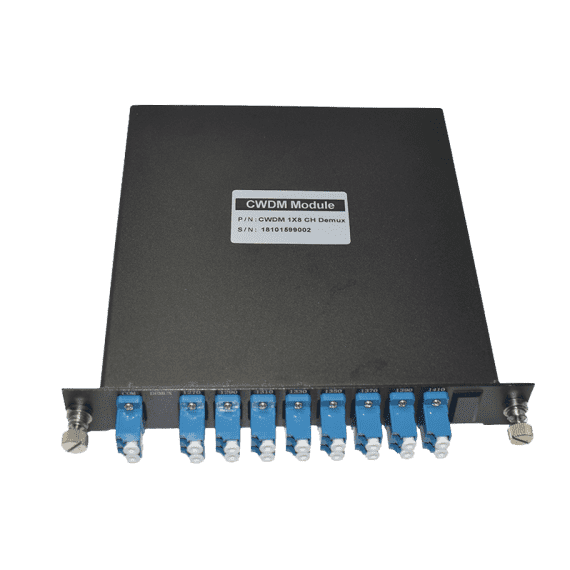

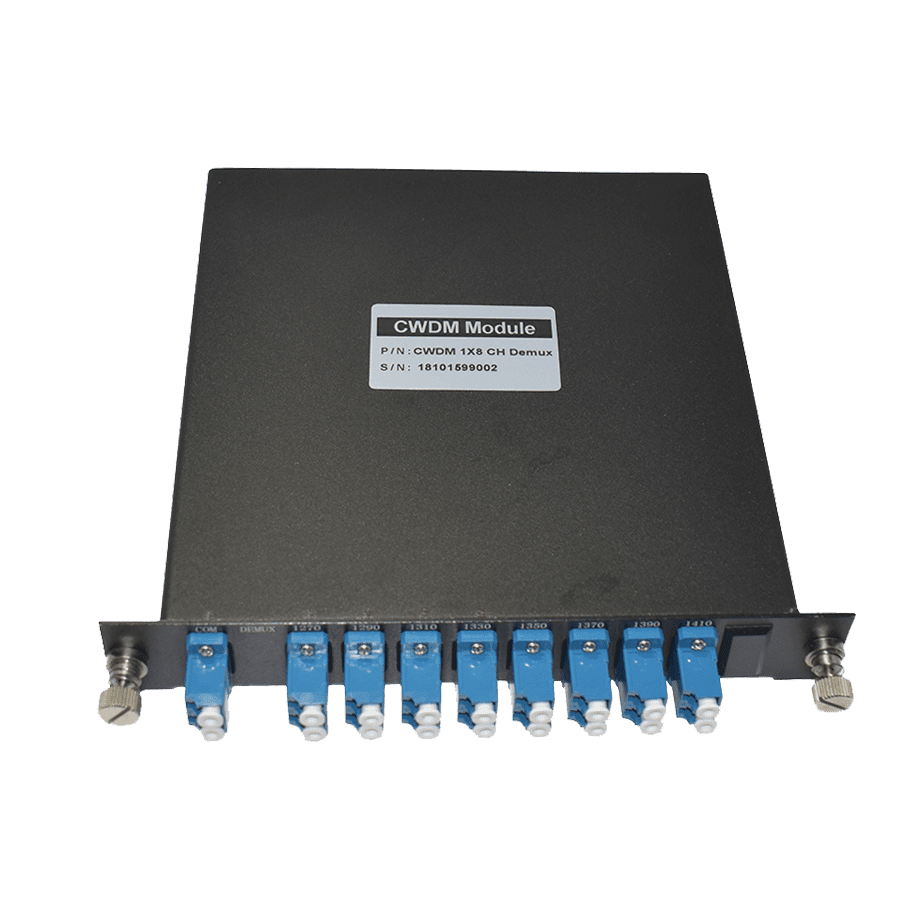

CWDM LGX
CWDM LGX
Description
Applications:
◆Line monitoring
◆WDM network
◆Telecommunication
◆Cellular application
◆Fiber optical amplifier
◆Access network
Features:
◆Low Insertion Loss
◆Wide pass band
◆High channel
◆High stability and reliability
◆Epoxy free on optical path
Parameters:
| Parameter | 4 Channels | 8 Channels | 16 Channels | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | 1270~1610 or 1271~1611 | ||||||
| Channel Spacing（nm） | 20 | ||||||
| Channel Passband (@-0.5dB bandwidth (nm) | ≥13 | ||||||
| Insertion Loss（dB） | ≤1.5 | ≤2.5 | Low≤3.5 Standard≤4.5 | ||||
| Isolation（dB） | Adjacent | ≥30 | |||||
| Non-adjacent | ≥40 | ||||||
| Insertion Loss Temperature Sensitivity(dB) | ≤0.5 | ||||||
| Wavelength Temperature Shifting (nm/℃) | ≤0.002 | ||||||
| Polarization Dependent Loss（dB） | ≤0.2 | ||||||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||||||
| Directivity（dB） | ≥50 | ||||||
| Return Loss（dB） | ≥45 | ||||||
| Maximum Power Handling （mW） | 300 | ||||||
| Opterating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension (mm) | L100×W80×H10 | L120×W80×H18 | |||||
| 19″ 1U Rackmount | |||||||
