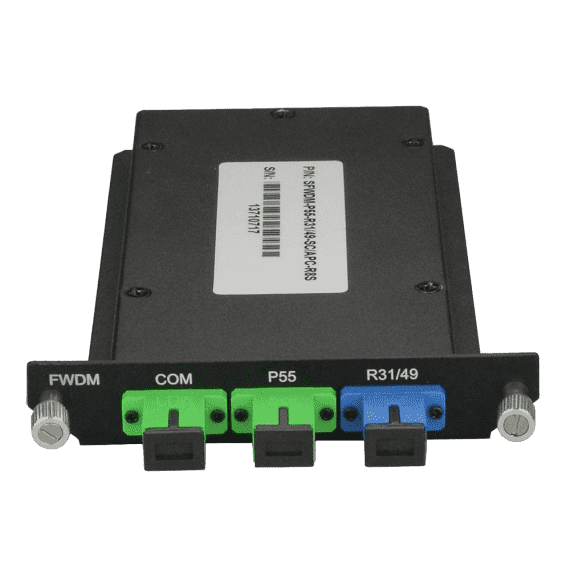

FWDM LGX
FWDM LGX
Description
Applications:
◆Testing Instruments
◆ FTTH Tri-Play System
Features:
◆Wide Operating Wavelength Range
◆Low inertion loss
◆Ultra Flat Wide Passband
◆High Channel Isolation
◆High stability and reliability
◆Epoxy-free on Optical Path
Parameters:
| Parameter | 4 Channel | 8 Channel | 16 Channel | 32 Channel | |
| CATV Wavelength Range (nm) | 1540~1560 | ||||
| PON Wavelength Range (nm) | 1260~1360&1480~1500 | ||||
| Insertion Loss（dB） | CATV-COM | ≤8 | ≤11.6 | ≤14.5 | ≤17.8 |
| COM-PON | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | |
| Isolation（dB） | COM-CATV(@PON) | >30 | |||
| COM-CATV(@PON) | >15 | ||||
| Inertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||
| Polarization Dependent Loss（dB） | <0.1 | ||||
| Polarization Mode Dispersion（ps） | <0.1 | ||||
| Directivity (dB) | >50 | ||||
| Return Loss（dB） | >50 | ||||
| Maximum Power Handling（mW） | 300 | ||||
| Opterating Temperature (℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| Package Dimention(mm) | For 4 | 100×80×10 | |||
| For 8 | 120×80×18 | ||||
| For 16,32 | 140×114×18 | ||||
| For 4,8,16,32 | 19’’1U | ||||
