OC-90
OC-90
Description

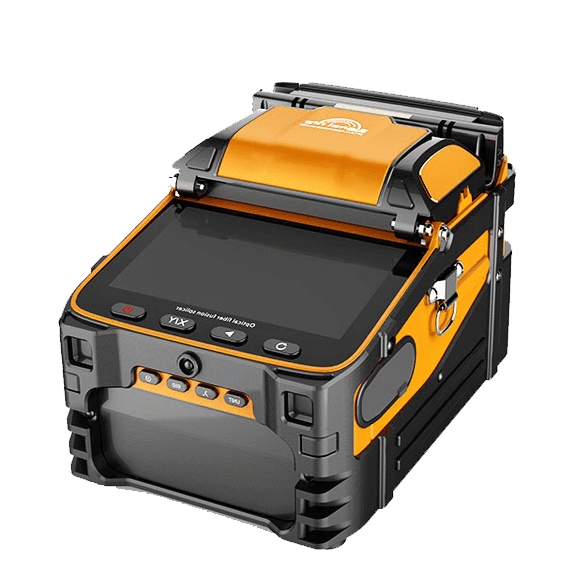

Fiber splicer OC-9 is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function.
Features:
◆Industrial quad-core CPU, fast running speed, 5 seconds fast welding, 15 seconds fast heating,
◆5 inches high resolution LCD screen, 300 times magnification
◆Large-capacity lithium battery can be heated by fusion of about 260 cores,
◆high altitude, desert, extremely cold and other harsh environment performance is still outstanding.
Parameters:
| Fiber aligning method | Meticulous , Core , Clad , Manual |
| Splicing time | 5S |
| Heating time | 15S |
| Heating mode | Auto Calibrate Normal Special |
| Applicable fibers | SM MM DS NZDS |
| Actual average splice loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss | > 60dB |
| Fiber cleaved length | 8-16mm (Coating diameter:250μm) |
| Fiber diameter | Cladding diameter:80-150μm;Coating diameter:100-1000μm |
| Built-in lighting | easy for night operation |
| Tension test | 2N |
| Fiber holder | 3 in 1 fiber holder SM MM bare pigtail rubber fiber multi |
| Magnification | 300X (X or Y view) , 50X (X and Y view) |
| Monitor | 5 inch TFT color LCD monitor |
| Protection sleeve | 60mm, 40mm |
| Power supply | AC 100-240V with AC adapter inner Li-battery (7800mAH) |
| Dimension | 120(D)*130(W)*154(H)mm |
