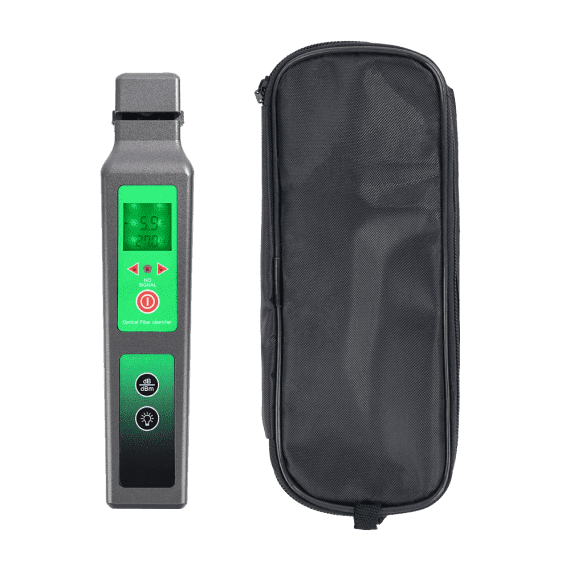

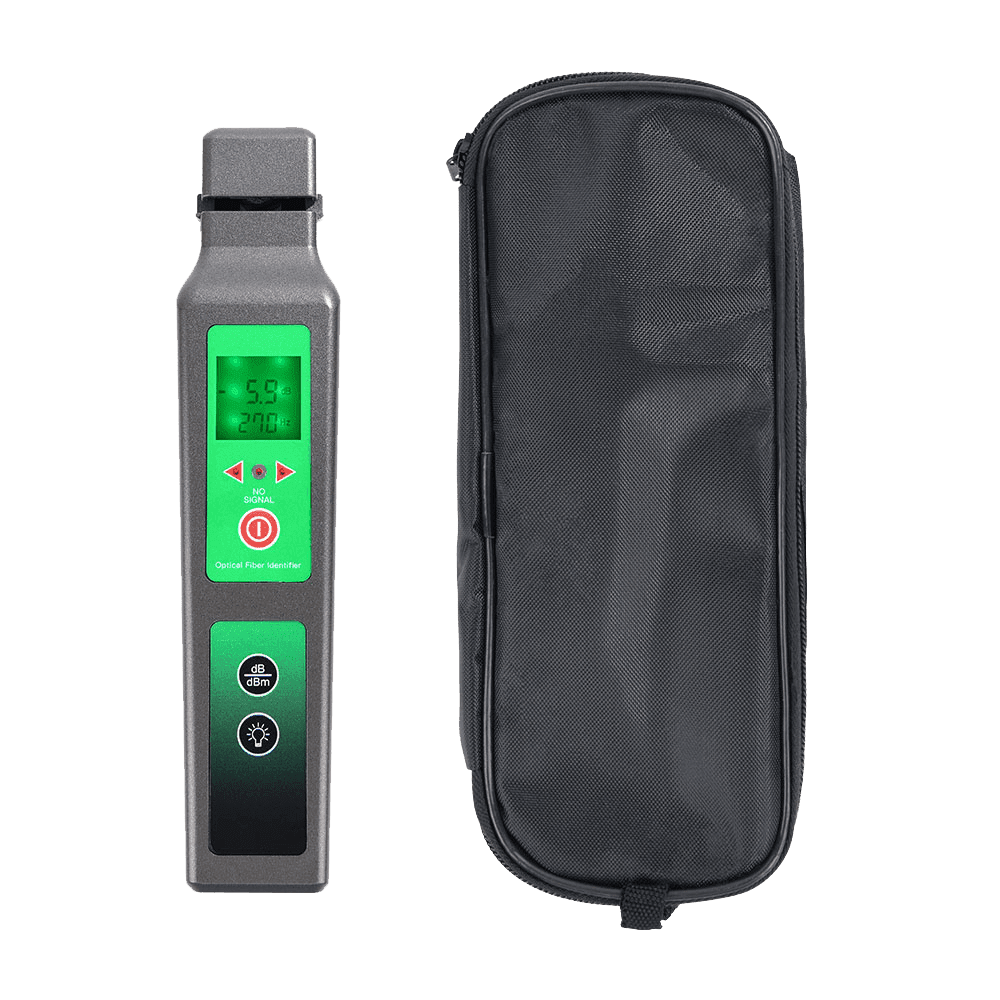

Optic fiber ldentifier-C

Description

Features:



◆TFT color screen
◆Indicate the signal directions and power in fiber
◆Indicate the signal presence or absence(Live or dark fiber)
◆Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
◆Displays the relative core power
◆Don’t need to replace adaptor
◆Lower power indication
◆Build in VFL function





Parameters:



Identified Wavelength Range 750-1700 nm
Insertion Loss 1.0dB
Fiber Type < 3mm Fiber
Identified Signal Type 270Hz/1KHz/2KHz
Display Type LED
Detector Type 1mm InGaAs
Minimum detection power -35dBm(1550nm)
-30dBm(1310nm)



Center Wavelength 650nm
Output Power  10mW
Alkaline Battery 2*AA
Battery Life > 60H
Operating Temperature 0~+50℃
Storage Temperature -20~+60℃
