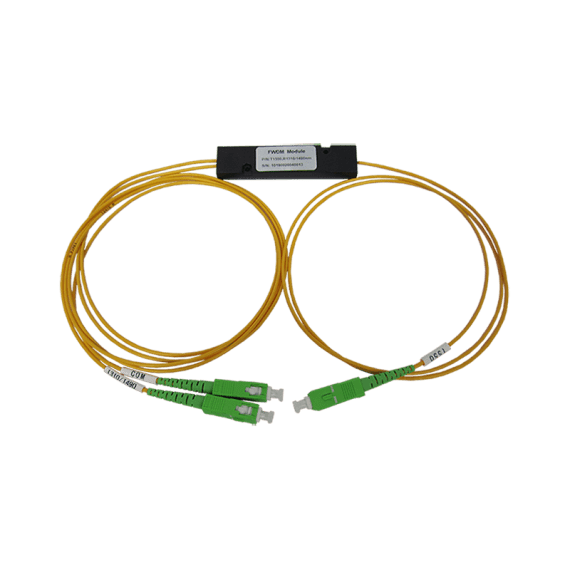

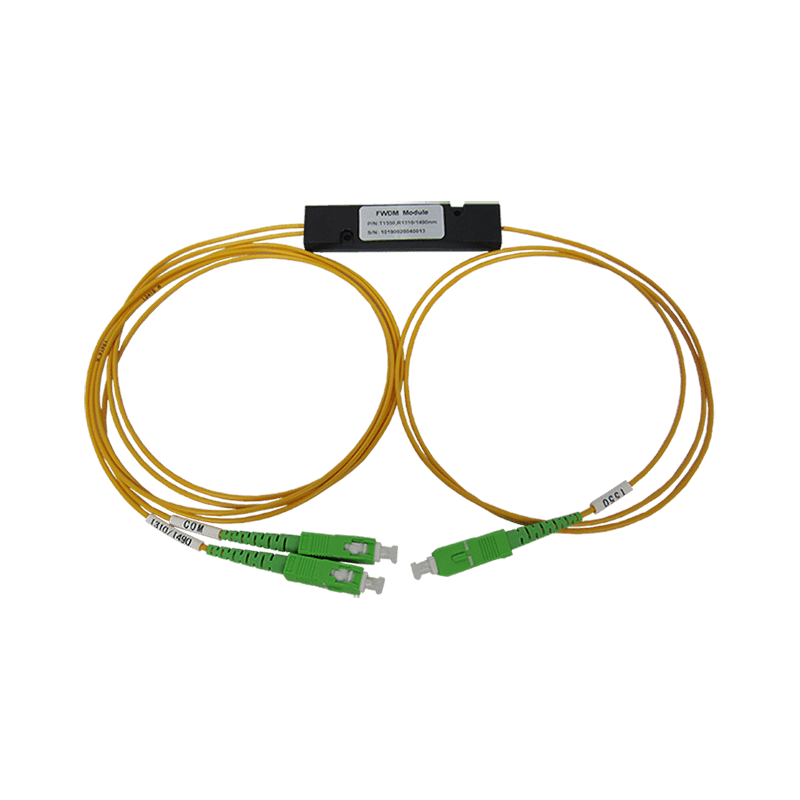

FWDM
FWDM
Description
Applications:
◆Testing Instruments
◆ FTTH Tri-Play System
Features:
◆Wide Operating Wavelength Range
◆Low inertion loss
◆Ultra Flat Wide Passband
◆High Channel Isolation
◆High stability and reliability
◆Epoxy-free on Optical Path
Parameters:
| Parameter | FWDM 4/35 | FWDM 5/34 | FWDM 3/45 | |
| Pass Band Wavelength Range （nm） | 1480~1500 | 1540~1560 | 1260~1360 &1480~1500 | |
| Reflection Band 1 Wavelength Range（nm） | 1260~1360 | 1260~1360 | 1540~1560 | |
| Reflection Band 2 Wavelength Range （nm） | 1540~1560 | 1480~1500 | ||
| Insertion Loss（dB） | Reflect Channel | ≤0.6 | ||
| Pass Channel | ≤0.4 | |||
| Isolation（dB） | Pass Channel | ≥30 | ||
| Reflect Channel | ≥15 | |||
| Inertion Loss Temperature Sensitivity(dB) | ≤0.3 | |||
| Polarization Dependent Loss（dB） | ≤0.1 | |||
| Polarization Mode Dispersion（ps） | ≤0.1 | |||
| Directivity（dB） | ≥50 | |||
| Return Loss（dB） | ≥50 | |||
| Maximum Power Handling（mW） | 300 | |||
| Opterating Temperature(℃) | -10~+70 | |||
| Storage Temperature(℃) | -40~+85 | |||
| Package dimension(mm) | For 250μm, 900μm | Φ5.5xL38 | ||
| For 2.0mm, 3.0mm | L90xW20xH10 | |||
