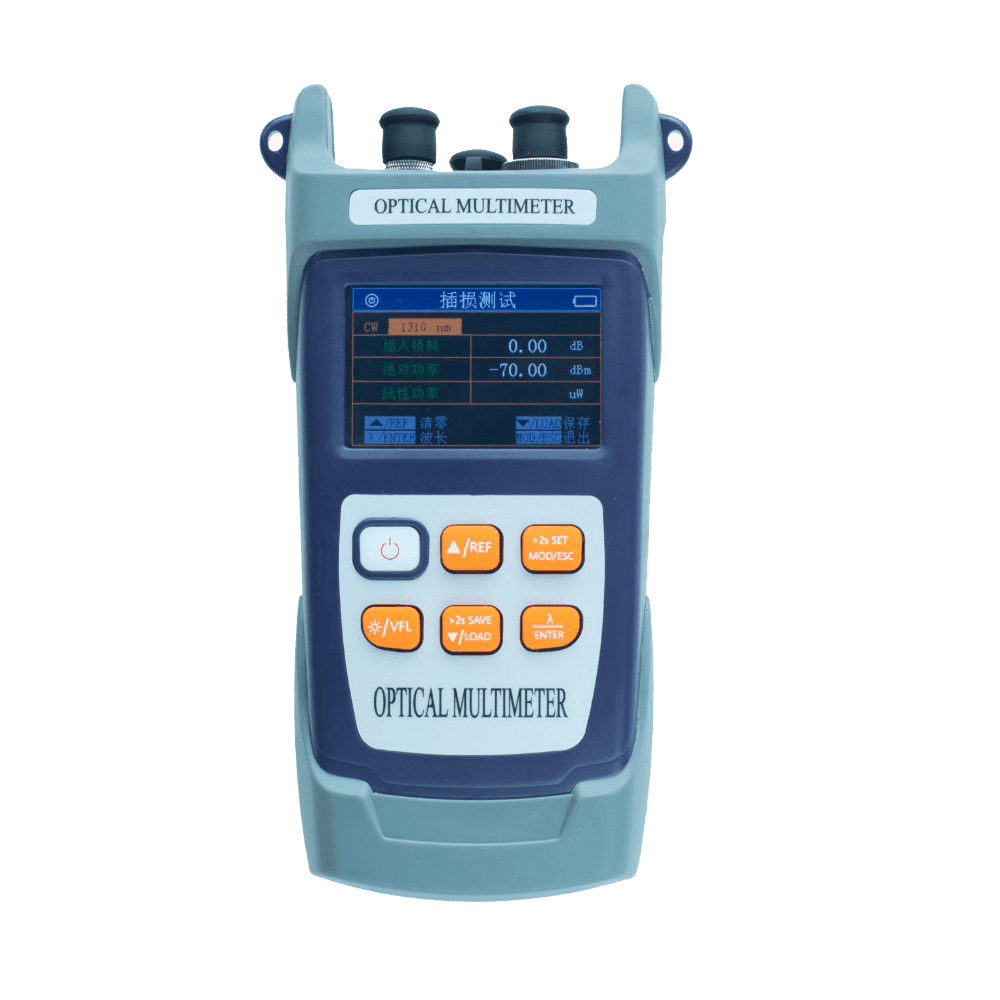

Insertion and Return Loss Meter
Insertion and Return Loss Meter
Description
Features:
◆ A variety of functional test pattern (RL.IL.OPM.OLS)
◆ The test data uploading is stored.
◆ Support USB power supply function.
◆Interface simple, easy to operate.
Parameters:
| Return Loss Testing | |
| Wavelength(nm) | 1310/1550 |
| Plus Width(nm) | <5 |
| Displaying range(dB) | -70~+0 |
| Accuracy(dB) | ±0.5 |
| Optical Connector | FC/APC |
| Resolution(dB) | 0.01 |
| Return loss testing | |
| Wavelength(nm) | 1310/1550 |
| Power range(dB) | 0-70 |
| Accuracy(dB) | ±0.5 |
| Resolution(dB) | 0.01 |
| Connector | FC/APC |
| Power Meter | |
| Wavelength(nm) | 800~1700 |
| Calibrated wavelength(nm) | 850, 1300, 1310, 1490, 1550, 1625 |
| Connatural uncertainty(dB) | ±0.25 |
| Displaying Range(dBm) | -70 ~+6 |
| Communication Port | USB |
| Alkaline battery | 3*AA,1.5V |
| Display | LCD |
| Operation Temperature(°C) | -10~+60 |
| Storage Temperature(°C) | -25~+70 |
